VV5430 Datasheet (ETC) - Integrated CMOS Image Sensor

VV5430, Integrated CMOS Image Sensor

The VV5430 is a highly-integrated VLSI camera device based on VISION’s unique CMOS sensor technology.

It is suitable for applications requiring minimum external circuitry, digitisation of the video signal or external microprocessor control.

The device incorporates a 388 x 295 pixel image sensor and

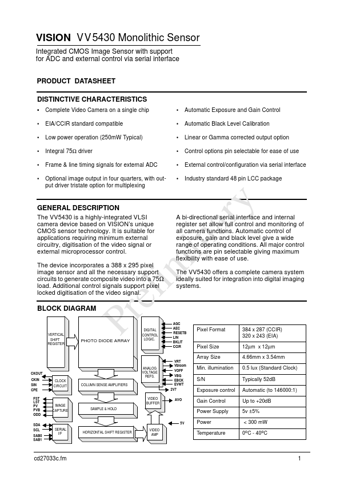

VISION VV 5430 Monolithic Sensor Integrated CMOS Image Sensor with support for ADC and external control via serial interface PRODUCT DATASHEET DISTINCTIVE CHARACTERISTICS Complete Video Camera on a single chip EIA/CCIR standard compatible Low power operation (250mW Typical) Integral 75Ω driver Frame & line timing signals for external ADC Optional image output in four quarters, with output driver tristate option for multiplexing

VV5430 Features

* The VV5430 delivers a fully-formatted composite monochrome video signal. Standards options include EIA (320 x 244) and CCIR (384 x 287). On chip signal conditioning allows user-selection of linear or gammacorrected output. Different operational modes can be selected dynamically via the external inte
