UIC4102CP - extension cable between USB device and host

The UIC4102CP by ETC is a extension cable between USB device and host. Below is the official datasheet preview.

📥 Download Datasheet

UIC4102CP extension cable between USB device and host by ETC - Datasheet Preview — Official preview page of the **UIC4102CP** extension cable between USB device and host datasheet (ETC).

Datasheet Details

Part number	UIC4102CP
Manufacturer	ETC
File Size	217.54 KB
Description	extension cable between USB device and host
Datasheet	UIC4102CP_ETC.pdf

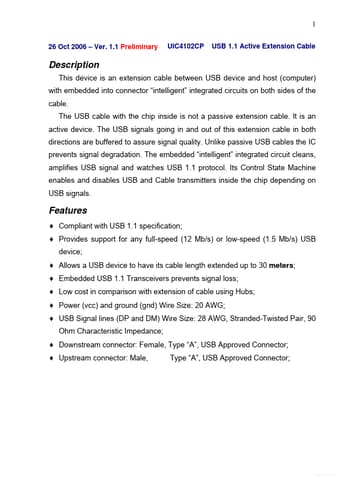

Additional preview pages of the UIC4102CP datasheet.

UIC4102CP Product details

Description

This device is an extension cable between USB device and host (computer) with embedded into connector “intelligent” integrated circuits on both sides of the cable.

Features

Compliant with USB 1.1 specification;.
Provides support for any full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB device;.
Allows a USB device to have its cable length extended up to 30 meters;.
Embedded USB 1.1 Transceivers prevents signal loss;.
Low cost in comparison with extension of cable using Hubs;.
Power (vcc) and ground (gnd) Wire Size: 20 AWG;.
USB Signal lines (DP and DM) Wire Size: 28 AWG, Stranded-Twisted Pair, 90 Ohm Ch.
