TWS-434 RF TRANSMITTER

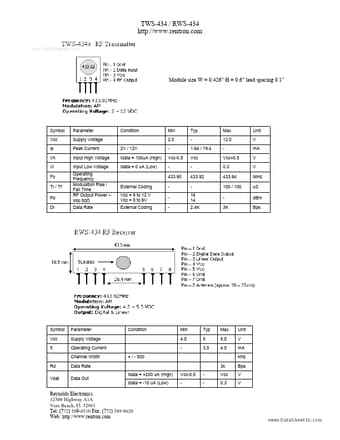

TWS-434 / RWS-434 http://www.rentron.com www.DataSheet4U.com Module size W = 0.426” H = 0.6” lead spacing 0.1” Symbol Vcc Ip Vh Vl Fo Tr / Tf Po Dr Parameter Supply Voltage Peak Current Input High Voltage Input Low Voltage Operating Frequency Modulation Rise / Fall Time RF Output Power Into 50Ω Data Rate Condition Min 2.0 Typ 1.64 / 19.4 Vcc 433.92 16 14 2.4K Max 12.0 Vcc+0.5 0.3 433.94 100 / 100 3K Unit V mA V V MHz uS dBm Bps 2V / 12V Idata = 100uA (High) Idata = 0 uA (Low) .
