TCO-7116X1V - Crystal Clock Oscillator

The TCO-7116X1V by ETC is a Crystal Clock Oscillator. Below is the official datasheet preview.

Datasheet Details

Part number	TCO-7116X1V
Manufacturer	ETC
File Size	121.10 KB
Description	Crystal Clock Oscillator
Datasheet	TCO-7116X1V_ETC.pdf

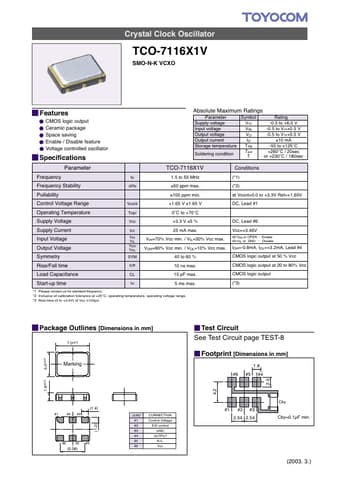

Additional preview pages of the TCO-7116X1V datasheet.

CMOS logic output Ceramic package Space saving Enable / Disable feature Voltage controlled oscillator Absolute Maximum Ratings Parameter Symbol Supply voltage Vcc Input voltage VIN Output voltage VO Output current IO Storage temperature Tstg Tsol Soldering condition T Rating -0.5 to +6.0 V -0.5 to Vcc+0.5 V -0.5 to Vcc+0.5 V ±10 mA -55 to +125°C +260°C / 20sec or +230°C / 180sec Specifications Parameter Frequency Frequency Stability Pullability Control Voltage Range Operating Temperature Suppl.
