SI-8000S - Separate Excitation Step-down Switching Mode

📥 Download Datasheet

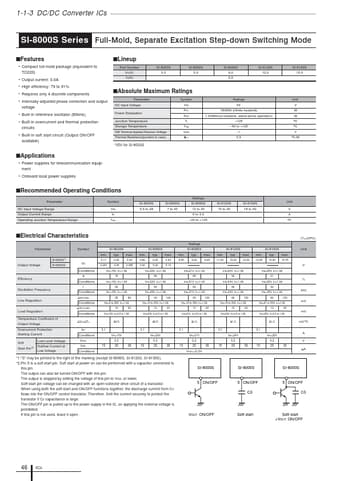

SI-8000S Datasheet Preview — Preview of SI-8000S PDF

datasheet Preview Page 2

Datasheet Details

Part number	SI-8000S
Manufacturer	ETC
File Size	53.78 KB
Description	Separate Excitation Step-down Switching Mode
Datasheet	SI-8000S-ETC.pdf

SI-8000S Product details

Features

Compact full-mold package (equivalent to TO220).
Output current: 3.0A.
High efficiency: 79 to 91%.
Requires only 4 discrete components.
Internally-adjusted phase correction and output voltage.
Built-in reference oscillator (60kHz).
Built-in overcurrent and thermal protection circuits.
Built-in soft start circuit (Output ON/OFF available).
Lineup Part Number VO(V) IO(A) SI-8033S 3.3 SI-8050S 5.0 SI-8090S 9.0 3.0 SI.
