SC451XX LI-ION BATTERY PROTECTOR

SC451XX Description

Silan Semiconductors LI-ION BATTERY PROTECTOR .
The SC451XX series are protection ICs for over-charge /discharge of rechargeable one-cell Lithium-ion (Li+) batteries by CMOS process.

SC451XX Features

* Low supply current.
* High withstand voltage.
* High accuracy detector threshold.
* Variety of detector threshold.
* Built-in protection circuit.
* Output delay of over-charge.

SC451XX Applications

* Over-charge/over-discharge protection for Li+ one-cell pack
* High precision protectors for cell-phones and any other gadgets using on board Li+ one-cell battery. PIN ASSIGNMENT BLOCK DIAGRAM 5 VDD 2 Ct 6 5 4 VD1 Level shift SC451XX delay VD2 1 2 3 short circuit detector VD3 3 V

📥 Download Datasheet

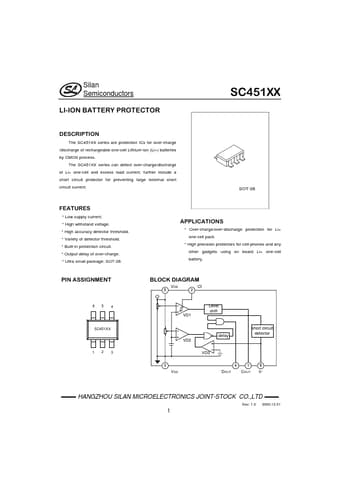

Preview of SC451XX PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC451XX
Manufacturer
ETC
File Size
209.94 KB
Datasheet
SC451XX_ETC.pdf
Description
LI-ION BATTERY PROTECTOR
