SC-A1479 - CRYSTAL CLOCK OSCILLATORS

Description

The SC-A1470 Series of quartz crystal oscillators provide enable/disable 3-state LVCMOS compatible signals for bus connected systems.

Supplying Pin 1 of the SC-A1470 units with a logic “1" or open enables its Pin 3 output.

In the disable mode, Pin 3 presents a high impedance to the load.

Features

  • Wide freqency range: 4.0MHz to 20.0MHz.
  • User specified tolerance ±100ppm.
  • Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
  • Space-saving alternative to discrete component oscillators.
  • High shock resistance, to 1000g.
  • Low Jitter - Wavecrest jitter characterization available Electrical Connection Pin 1 2 3 4 Connection Enable/Disable Ground Output VDD.
  • High Reliability - NEL HALT/HASS qualified for crystal oscill.

📥 Download Datasheet

Datasheet Details

Part number SC-A1479
Manufacturer Unknown Manufacturer
File Size 168.29 KB
Description CRYSTAL CLOCK OSCILLATORS
Datasheet download datasheet SC-A1479 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SC-A142x Crystal Clock Oscillators NEL Frequency Controls
SC-AK18 CD Player Panasonic
SC-AK200 (SC-AKxx0 ) CD Stereo System Panasonic
SC-AK22 (SC-AKxx) CD Stereo System Panasonic
SC-AK240 (SC-AK240 / SC-AK340) CD Stereo System Panasonic

Other Datasheets by Unknown Manufacturer

Part Number Description
SC-A1470 CRYSTAL CLOCK OSCILLATORS
SC-A1471 CRYSTAL CLOCK OSCILLATORS
SC-A1477 CRYSTAL CLOCK OSCILLATORS
SC-A147A CRYSTAL CLOCK OSCILLATORS
SC-A147B CRYSTAL CLOCK OSCILLATORS

Full PDF Text Transcription

Click to expand full text

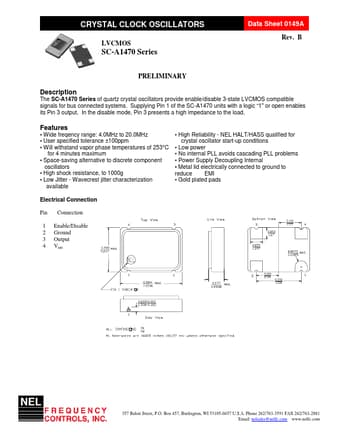

CRYSTAL CLOCK OSCILLATORS LVCMOS Data Sheet 0149A Rev. B SC-A1470 Series PRELIMINARY Description The SC-A1470 Series of quartz crystal oscillators provide enable/disable 3-state LVCMOS compatible signals for bus connected systems. Supplying Pin 1 of the SC-A1470 units with a logic “1" or open enables its Pin 3 output. In the disable mode, Pin 3 presents a high impedance to the load. Features • Wide freqency range: 4.0MHz to 20.
