S9318S - Nonvolatile DACPOT Electronic Potentiometer

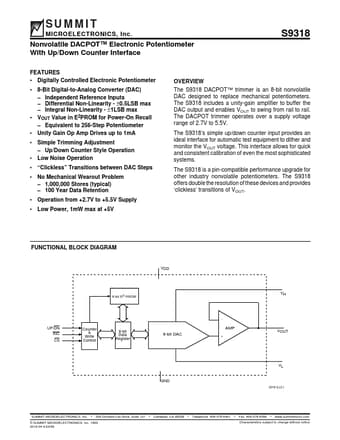

S9318S Datasheet Preview — Preview of S9318S PDF

Datasheet Details

Part number	S9318S
Manufacturer	ETC
File Size	34.89 KB
Description	Nonvolatile DACPOT Electronic Potentiometer
Datasheet	S9318S_ETC.pdf

S9318S Product details

Description

Increment Input, High to Low Edge Trigger Up/Down Input controlling relative VOUT movement V+ reference input Analog and Digital Ground Trimmed Voltage Output V- reference input Active low chip select input Supply Voltage (2.7V to 5.5V) 2016 ILL1.1 PINOUT INC UP/DN VH GND 1 2 3 4 8 7 6 5 VDD CS VL VOUT Analog Section The S9318 is an 8-bit, voltage output digital-to-analog converter (DAC).The DAC consists of a resistor network that converts an 8-bit value into equivalent analog output volt

Features

Digitally Controlled Electronic Potentiometer.
8-Bit Digital-to-Analog Converter (DAC).
Independent Reference Inputs.
Differential Non-Linearity - ±0.5LSB max.
Integral Non-Linearity - ±1LSB max.
VOUT Value in E2PROM for Power-On Recall.
Equivalent to 256-Step Potentiometer.
Unity Gain Op Amp Drives up to 1mA.
Simple Trimming Adjustment.
Up/Down Counter Style Operation.
Low Noise Operation.
