RT3216 THICK FILM CHIP RESISTORS

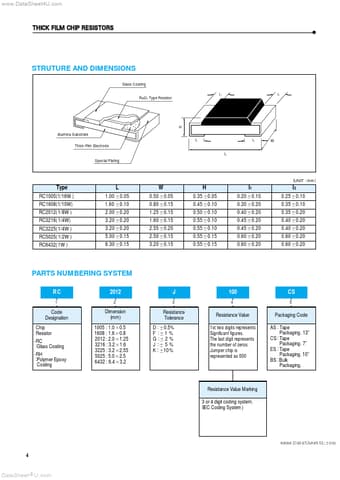

www.DataSheet4U.com STRUTURE AND DIMENSIONS Glass Coating l1 l1 RuO2 Type Resistor H Alumina Substrate l2 Thick-Film Electrode L Special Plating l2 W (UNIT : mm ) Type RC1005(1/16W ) RC1608(1/10W) RC2012( 1/8W ) RC3216( 1/4W) RC3225( 1/4W ) RC5025( 1/2W ) RC6432( 1W ) 1.60 L 1.00 0.05 0.10 2.00 0.20 3.20 0.20 3.20 0.20 5.00 0.15 6.30 0.15 W 0.50 0.05 0.80 0.15 1.25 0.15 1.60 0.15 2.55 0.20 2.50 0.15 3.20 0.15 H 0.35 0.05 0.45 0.10 0.50 0.10 0.55 0.10 0.55 0.10 0.55 0.15 0.55 0.15 I1 0.2.

RT3216 Features

* Available in use of function trimming. Compatible with both wave and reflow soldering. Highly stable in auto-placement surface mounting application. Excellent eletrical characteristic. DIMENSIONS X, Y : Trimming area (Unit : mm) TYPE RT1608 RT2012 RT3216 L 1.60 0.10 2.00 0.20 3.20 0.20 W 0.80
