QX73-C-S - Microminiature relay

This page provides the datasheet information for the QX73-C-S, a member of the QX73 Microminiature relay family.

Datasheet Summary

Features

  • Microminiature relay, 12A switching capability; Low coil power consumption; Standard PCB terminals. Typical.

📥 Download Datasheet

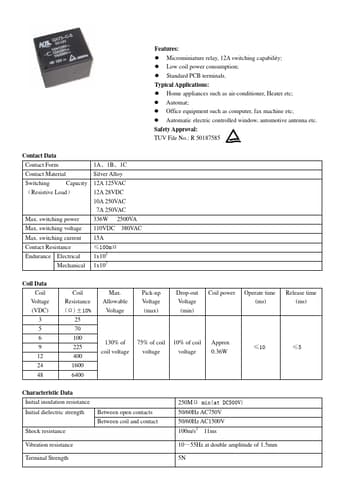

Datasheet preview – QX73-C-S

Datasheet Details

Part number QX73-C-S
Manufacturer ETC
File Size 357.66 KB
Description Microminiature relay
Datasheet download datasheet QX73-C-S Datasheet
Additional preview pages of the QX73-C-S datasheet.

📁 Similar Datasheet

  • QX7135 - Constant Current LED Driver (QXMD)
  • QX7135 - Linear constant current buck LED driver (QX Micro Devices)
  • QX7136 - Adjustable LED constant current driver (QXMD)
  • QX7138 - PWM Dimming LED Constant Current Driver (QXMD)
Other Datasheets by ETC

Full PDF Text Transcription

Click to expand full text
Features: Microminiature relay, 12A switching capability; Low coil power consumption; Standard PCB terminals. Typical Applications: Home appliances such as air-conditioner, Heater etc; Automat; Office equipment such as computer, fax machine etc; Automatic electric controlled window, automotive antenna etc. Safety Approval: TUV File No.: R 50187585 Contact Data Contact Form Contact Material Switching Capacity Resistive Load 1A 1B 1C Silver Alloy 12A 125VAC 12A 28VDC 10A 250VAC 7A 250VAC 336W 15A 1x105 1x107 2500VA 110VDC 380VAC Max. switching power Max. switching voltage Max. switching current Contact Resistance Endurance Electrical Mechanical Coil Data Coil Voltage (VDC) 3 5 6 9 12 24 48 Coil Resistance 25 70 100 225 400 1600 6400 Max.
