OM3910STM, OM3910NTM (OM3910xxx / OM3911xxx) POSITIVE ADJUSTABLE VOLTAGE REGULATOR APPROVED TO DESC DRAWING 5962-87675

OM3910STM Description

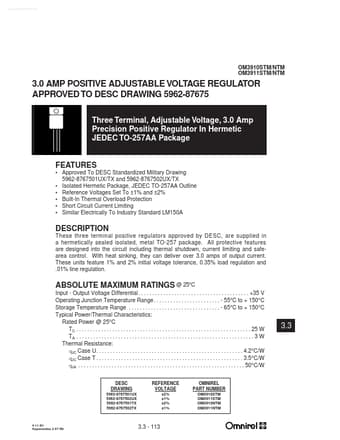

www.DataSheet4U.com OM3910STM/NTM OM3911STM/NTM 3.0 AMP POSITIVE ADJUSTABLE VOLTAGE REGULATOR APPROVED TO DESC DRAWING 5962-87675 Three Terminal, Ad.
These three terminal positive regulators approved by DESC, are supplied in a hermetically sealed isolated, metal TO-257 package.

OM3910STM Features

* Approved To DESC Standardized Military Drawing 5962-8767501UX/TX and 5962-8767502UX/TX
* Isolated Hermetic Package, JEDEC TO-257AA Outline
* Reference Voltages Set To ±1% and ±2%
* Built-In Thermal Overload Protection
* Short Circuit Current Limiting

OM3910STM Applications

* 1.2 - 25V Adjustable Regulator VIN ADJ. C1
* 1µF R2 5k
* Needed if device is far from filter capacitors † Optional
* improves transient response ‡ VOUT = 1.25V (1 + R2 ) R1 VOUT R1 240 + C2† 1µf VOUT‡ VIN 1µF Improving Ripple Rejection VIN ADJ. R2 365 1% VOUT 5V R1 121 1% + CL 10µf

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OM3910STM, OM3910NTM. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OM3910STM, OM3910NTM
Manufacturer
ETC
File Size
65.17 KB
Datasheet
OM3910NTM_ETC.pdf
Description
(OM3910xxx / OM3911xxx) POSITIVE ADJUSTABLE VOLTAGE REGULATOR APPROVED TO DESC DRAWING 5962-87675
Note
This datasheet PDF includes multiple part numbers: OM3910STM, OM3910NTM.
Please refer to the document for exact specifications by model.
