MS24524-21 - (MS Series) Standard Lever Selection Table

Features

  • Environmentally sealed.
  • 1, 2 and 4 pole circuitry.
  • 2 & 3 position with maintained and momentary action.
  • Molded-in terminal inserts and terminal numbers MIL-S-3950 Toggle Switches.

📥 Download Datasheet

Datasheet Details

Part number MS24524-21
Manufacturer Unknown Manufacturer
File Size 106.32 KB
Description (MS Series) Standard Lever Selection Table
Datasheet download datasheet MS24524-21 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS245 DUAL DIGIT NUMERIC DISPLAYS Micro Electronics
MS24547x Type MS Power Film Resistors Caddock
MS245A DUAL DIGIT NUMERIC DISPLAYS Micro Electronics
MS241A 0.4 DUAL DIGIT NUMERIC DISPLAYS Micro Electronics
MS241C 0.4 DUAL DIGIT NUMERIC DISPLAYS Micro Electronics

Other Datasheets by Unknown Manufacturer

Part Number Description
MS24524-xx (MS Series) Standard Lever Selection Table
MS24523-xx (MS Series) Standard Lever Selection Table
MS24525-xx (MS Series) Standard Lever Selection Table
MS24185M RELAYS
MS24667 Screw

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

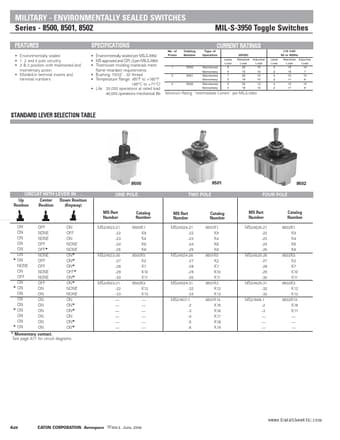

MILITARY - ENVIRONMENTALLY SEALED SWITCHES Series - 8500, 8501, 8502 FEATURES • Environmentally sealed • 1, 2 and 4 pole circuitry • 2 & 3 position with maintained and momentary action • Molded-in terminal inserts and terminal numbers MIL-S-3950 Toggle Switches CURRENT RATINGS Type of Operation 115 VAC 60 or 400Hz Lamp Resistive Inductive Load Load Load 3 15 10 2 15 7 4 15 15 2 11 8 4 15 15 2 11 8 SPECIFICATIONS • Environmentally sealed per MIL -S-3950 • MS approved and QPL'd per MIL -S-3950 • Thermoset molding materials meet flame retardant requirements • Bushing: 15/32" - 32 thread • Temperature Range: -85°F to +160°F (-65°C to +71°C) • Life: 20,000 operations at rated load 40,000 operations mechanical life No.
