BEFORE INITIATING A REPAIR PROCEDURE TO USE AN OVERSIZE BEARING, APPROVAL FOR MODIFYING AND REIDENTIFYING THE BEARING HOUSING MUST BE OBTAINED FROM THE COGNIZANT ENGINEERING AUTHORITY. REFER TO NAS0331 FOR installation PROCEDURE AND STAKING FORCES.
1. MATERIAL: BALL 44OC AMS-5630 OR PH13-8Mo AMS-5629 H1000 (SEE NOTE 8a). OUTER RING, AMS-5643 (17-4!3+). UNER PTFE SHALL BE INCLUDED IN THE UNER.
2. SURFACE TEXTURE: BALL DIA Ro B MAX; BORE, BALL, FACE, AND OUTER RING DIA Ro 32 MAX; ALL OTHERS Ro 125 MAX.
3. HARDNESS: BALL, 44OC 55-62 Rc OR PH13-8Mo RC 43 MIN; OUTER RING Rc 28 MIN/Rc 37 MAX BEFORE SWAGING.
oJ 4.

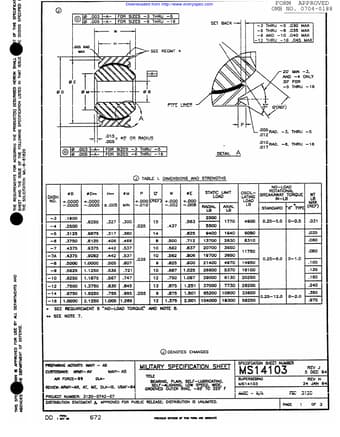

MS14103 Datasheet
