ME6401 - Low ESR Cap Compatable Positive Voltage Regulators

The ME6401 by ETC is a Low ESR Cap Compatable Positive Voltage Regulators. Below is the official datasheet preview.

📥 Download Datasheet

ME6401 Low ESR Cap Compatable Positive Voltage Regulators by ETC - Datasheet Preview — Official preview page of the **ME6401** Low ESR Cap Compatable Positive Voltage Regulators datasheet (ETC).

Datasheet Details

Part number	ME6401
Manufacturer	ETC
File Size	180.10 KB
Description	Low ESR Cap Compatable Positive Voltage Regulators
Datasheet	ME6401-ETC.pdf

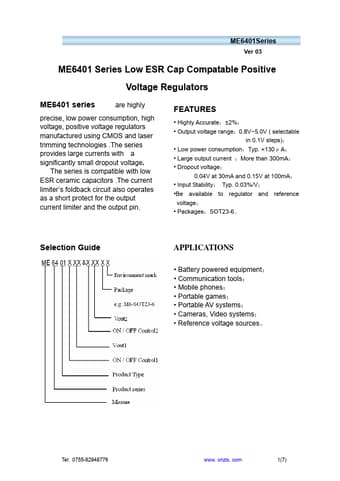

Additional preview pages of the ME6401 datasheet.

ME6401 Product details

Description

6.5 700 Vss-0.3 ~ Vout+0.3 250 -25 ~ +85 -40 ~ +125 260℃, 10s UNIT V mA V mW ℃ ℃ Tel: 0755-82948776 www.cnzls.com 2(7) ME6401Series Ver 03 Electrical Characteristics ME6401CXX&Cxx O (Vin=Vout+1V,Cin=Cout=1u,Ta=25 C Unless otherwise stated) PARAMETER Output Voltage1 Output Voltage2 Maximum Output Voltage Load Regulation Dropout Voltage (Note 3) Supply Current Line Regulations Power Supply Ripple Rejection Ratio Short Circuit Current Over Current Protection SYMBOL VOUT(E) (Note 2) VOUT(E)

Features

Highly Accurate：±2%；.
Output voltage range：0.8V~5.0V ( selectable in 0.1V steps)；.
Low power consumption：Typ. =130μA；.
Large output current ：More than 300mA；.
Dropout voltage： 0.04V at 30mA and 0.15V at 100mA；.
Input Stability： Typ. 0.03%/V；.
Be available to regulator and reference voltage；.
Packages：SOT23-6。 precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming.
