MA502 Magnetic Display

MA502 Description

Magnetic Display MA502 This display serves to interpret information from the incremental MS500 magnetic sensor for distance and angle measurement.The.

MA502 Features

* high-contrast 12-digit LCD, dot matrix integrated translation module for length and angle measurement
* incremental/reset function
* input for reference switch
* programmable last value memory
* direct input of reference/offset value
* option: 2 measuring channels
* 13

📥 Download Datasheet

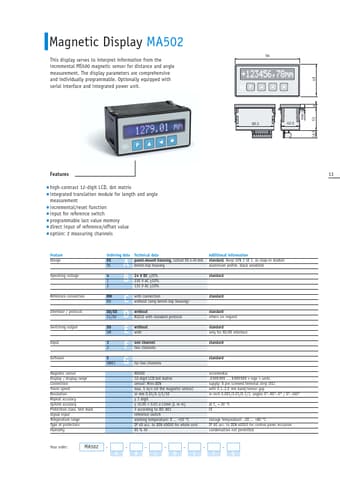

MA502 Datasheet Preview — Preview of MA502 PDF

Datasheet Details

Part number: MA502
Manufacturer: ETC
File Size: 59.50 KB
Datasheet: MA502-ETC.pdf
Description: Magnetic Display
