M3764 - VDD CONTROL ALARM SOUND

Features

  • Alarm siren sound.
  • Minimum external compoment. IC M3764 HORN VDD OPT ALARM SIREN.
  • OPT : OPEN = 6 sound VDD = 6 sound with soft chirp Soft chirp =200ms.

📥 Download Datasheet

Datasheet Details

Part number M3764
Manufacturer Unknown Manufacturer
File Size 107.67 KB
Description VDD CONTROL ALARM SOUND
Datasheet download datasheet M3764 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M37640E8 SINGLE-CHIP 8-BIT CMOS MICROCONTROLLER Mitsubishi
M37640E8FP SINGLE-CHIP 8-BIT CMOS MICROCONTROLLER Mitsubishi
M37640E8FS SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER Mitsubishi
M37640M4T SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER Mitsubishi
M37640M8-111FP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER Mitsubishi

Other Datasheets by Unknown Manufacturer

Part Number Description
M3763A HORN/SIREN IC
M3710A ON/OFF SIREN
M3720 1 KEY 1 SOUND
M3731 4 SIRENS & MACHINE GUN 2 LEDS BLINKING
M3731-1 4 SIRENS & MACHINE GUN 2 LEDS BLINKING

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

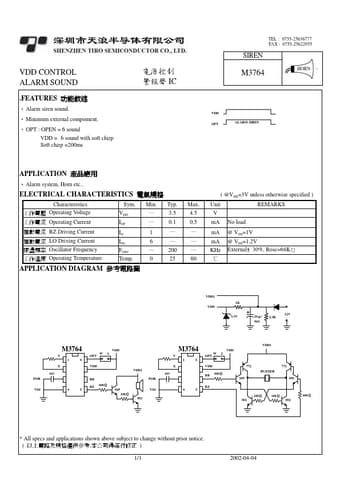

TEL : 0755-25636777 FAX : 0755-25622955 SIREN VDD CONTROL ALARM SOUND .FEATURES • Alarm siren sound. • Minimum external compoment. IC M3764 HORN VDD OPT ALARM SIREN • OPT : OPEN = 6 sound VDD = 6 sound with soft chirp Soft chirp =200ms APPLICATION • Alarm system, Horn etc.. ELECTRICAL CHARACTERISTICS Characteristics Operating Voltage Operating Current BZ Driving Current LO Driving Current Oscillator Frequency Operating Temperature Sym. VDD IOP IO IOL FOSC Temp. Min. ― ― 1 6 ― 0 Typ. 3.5 0.1 ― ― 200 25 Max. 4.5 0.5 ― ― ― 60 Unit V mA mA mA ( @VDD=3V unless otherwise specified ) REMARKS No load @ VDS=1V @ VDS=1.2V External± 30%, Rosc=68KΩ KHz ℃ APPLICATION DIAGRAM VDD1 1K VDD 3.3V 10μ/ 50V 2.
