M1150 - LED flashes IC

Features

  • Totally built-in OSC. 48V LED IC M1150.
  • Operating voltage : 48v Typ. with a resistor load.
  • Blink 64 cycles in about 32 seconds and keep on.
  • M1150G : Gold plating. + RL -.

📥 Download Datasheet

Datasheet Details

Part number M1150
Manufacturer Unknown Manufacturer
File Size 107.52 KB
Description LED flashes IC
Datasheet download datasheet M1150 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M1102NC500 Fast Recovery Diode IXYS
M1102NC520 Fast Recovery Diode IXYS
M1102NC540 Fast Recovery Diode IXYS
M1102NC560 Fast Recovery Diode IXYS
M1102NC580 Fast Recovery Diode IXYS

Other Datasheets by Unknown Manufacturer

Part Number Description
M1150 LED flashes IC
M1173 64 PATTERN VISION PERSISTENCE
M11B416256A 256 K x 16 DRAM EDO PAGE MODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

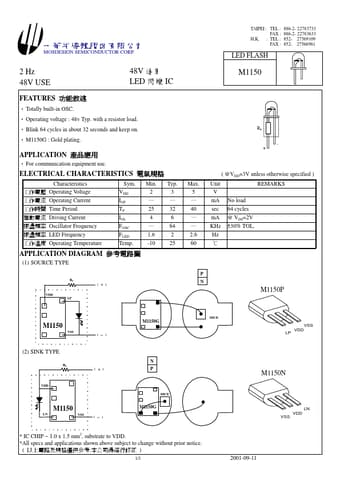

MOSDESIGN SEMICONDUCTOR CORP. TAIPEI : TEL : FAX : H.K. : TEL : FAX : 886-2- 22783733 886-2- 22783633 852- 27569109 852- 27566961 LED FLASH 2 Hz 48V USE FEATURES • Totally built-in OSC. 48V LED IC M1150 • Operating voltage : 48v Typ. with a resistor load. • Blink 64 cycles in about 32 seconds and keep on. • M1150G : Gold plating. + RL - APPLICATION • For communication equipment use. ELECTRICAL CHARACTERISTICS Characteristics Operating Voltage Operating Current Time Period Driving Current Oscillator Frequency LED Frequency Operating Temperature (1) SOURCE TYPE P RL ( ＋ ) VDD LP ( @VDD=3V unless otherwise specified ) Typ. 3 ― 32 6 64 2 25 Max. 5 ― 40 ― ― 2.6 60 Unit V mA sec mA KHz Hz ℃ No load 64 cycles @ VDS=2V ±30% TOL. REMARKS Sym. VDD IOP TP IOL FOSC FLED Temp.
