LG2401281-CW Datasheet (ETC)

LG2401281-CW, LCD Module

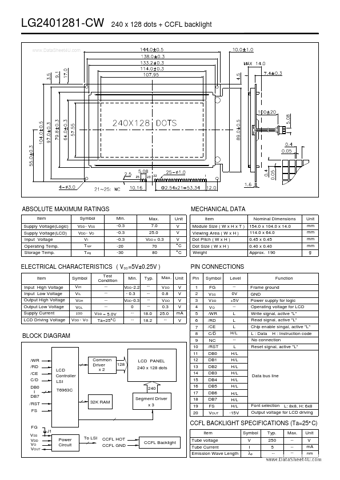

LG2401281-CW www.DataSheet4U.com 240 x 128 dots + CCFL backlight ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp.

Storage Temp.

Symbol VDD - VSS VDD - VO VI Topr Tstg Min.

-0.3 -0.3 -0.3 -20 -30 Max.

7.0 25.0 VDD + 0.3 70 80 Unit V V V °C °C MECHANICAL DATA Item Module Size ( W x H x T ) Viewing Area ( W x H ) Dot Pitch ( W x H ) Dot Size ( W x H ) Weight Nominal Dimensions 154.0 x 104.0 x 14.0 114.0 x 64.0 0.45 x 0.45 0.40 x 0.40 Approx.
