LG160323-SFLYH6V - LCD Module

📥 Download Datasheet

LG160323-SFLYH6V Datasheet Preview — Preview of LG160323-SFLYH6V PDF

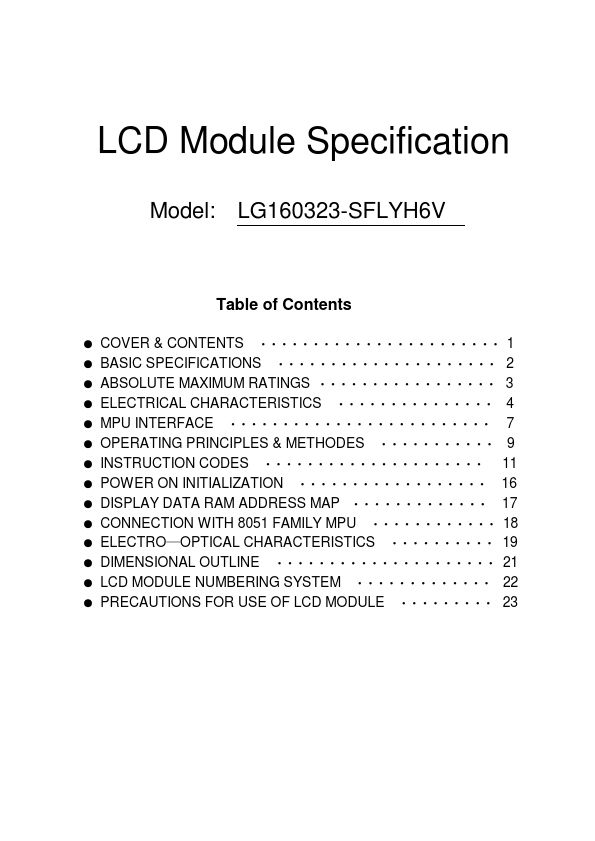

datasheet Preview Page 2

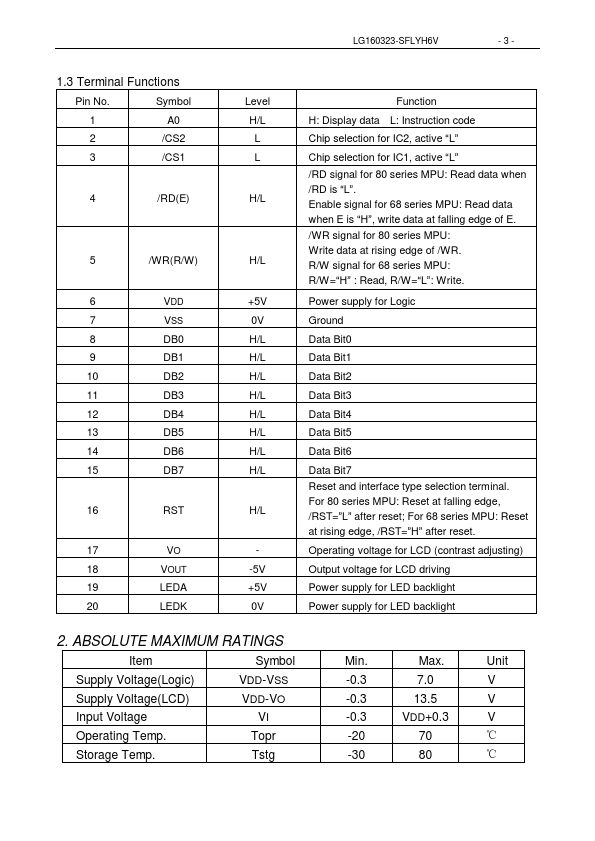

datasheet Preview Page 3

Datasheet Details

Part number	LG160323-SFLYH6V
Manufacturer	ETC
File Size	154.96 KB
Description	LCD Module
Datasheet	LG160323-SFLYH6V-ETC.pdf

LG160323-SFLYH6V Product details

Features

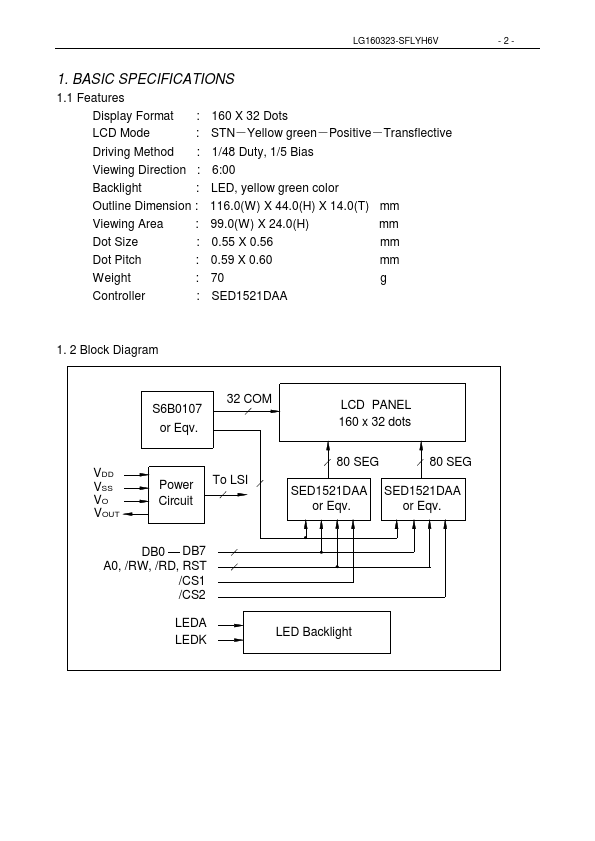

Display Format : 160 X 32 Dots LCD Mode : STN－Yellow green－Positive－Transflective Driving Method : 1/48 Duty, 1/5 Bias Viewing Direction : 6:00 Backlight : LED, yellow green color Outline Dimension : 116.0(W) X 44.0(H) X 14.0(T) mm Viewing Area : 99.0(W) X 24.0(H) mm Dot Size : 0.55 X 0.56 mm Dot Pitch : 0.59 X 0.60 mm Weight : 70 g Controller : SED1521DAA 1. 2 Block Diagram VDD VSS VO VOUT S6B0107 or Eqv. 32 COM LCD PANEL 160 x 32 dots Power To LSI Circuit 80 SEG 8.
