LC3171-61-M1 SINGLE DIGIT DISPLAY

Part No. LA3171-61-M1 EWEW LC3171-61-M1 EWEW LED Chip Material Emitting Color Face Color Surface Segments AlGaAs/GaAs Super Red Grey White AlGaAs/GaAs Super Red Grey White Absolute Maximum Ratings at Ta=25 Parameter Symbol Rating Unit Power Dissipation Per Segment COMMA. /DP. SEG..

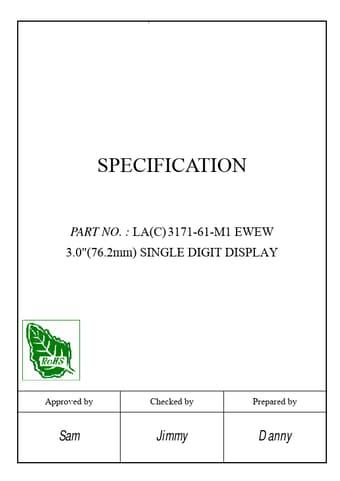

SPECIFICATION PART NO. : LA(C) 3171-61-M1 EWEW 3.0"(76.2mm) SINGLE DIGIT DISPLAY Approved by Sam Checked by Jimmy Prepared by Danny Dimensions LA(C)3171-61-M1 3.0" SINGLE DIGIT DISPLAY 10° 46.0 10 6 6.0 13.0 0.8 DIA. 76.2 110.0 80.0 3.5 MIN. 6.0 DIA. 1 5 COMMA 70.0 MARK 5.08X4=20.32 A FB G EC DP D Notes: 1. THE SLPE ANGLE OF ANY PIN MAY BE ±5.0° MAX. 2. ALL DIMENSIONS ARE IN mm,TOLERANCE IS ±0.25mm UNLESS OTHERWISE NOTED. Internal Circuit Diagram LA3171-61-M1 8 A B C D E F G DP .
