LC2021 20 characters x 2 lines

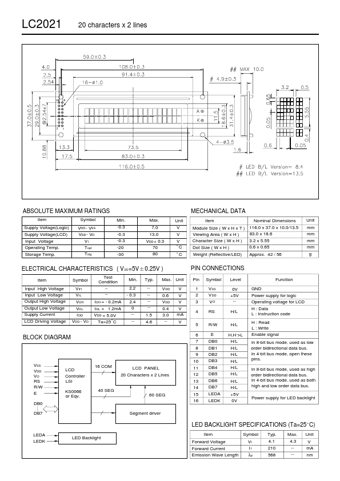

LC2021 20 characters x 2 lines ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 13.0 VDD + 0.3 70 80 Unit V V V C MECHANICAL DATA Item Module Size ( W x H x T ) Viewing Area ( W x H ) Character Size ( W x H ) Dot Size ( W x H ) Weight (Reflective/LED) Nominal Dimensions 116.0 x 37.0 x 10.0/13.5 83.0 x 18.6 3.2 x 5.55 0.6 x 0.65 Approx. 42 / 56 Unit mm .
