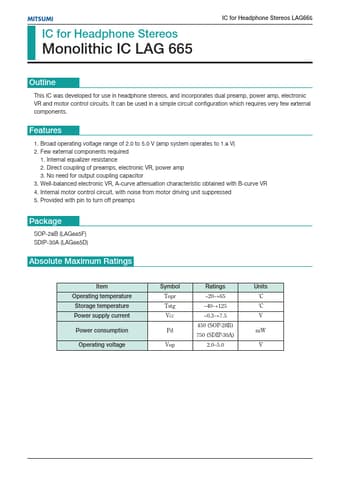

LAG665 - IC for Headphone Stereos Monolithic

Datasheet Details

Part number	LAG665
Manufacturer	ETC
File Size	169.00 KB
Description	IC for Headphone Stereos Monolithic
Datasheet	LAG665_ETC.pdf

1. Broad operating voltage range of 2.0 to 5.0 V (amp system operates to 1.8 V) 2. Few external components required 1. Internal equalizer resistance 2. Direct coupling of preamps, electronic VR, power amp 3. No need for output coupling capacitor 3. Well-balanced electronic VR, A-curve attenuation characteristic obtained with B-curve VR 4. Internal motor control circuit, with noise from motor driving unit suppressed 5. Provided with pin to turn off preamps Package SOP-28B (LAG665F) SDIP-30A (LAG.
