KA3842 - CurrentMode PWM Controller

KA3842 Description

KA3842/43/44/45 Inv № 59 Current Mode PWM Controller July 1995 - revised July 2002 .
KA3842/43/44/45 are fixed frequency current mode PWM controller. Line and DC to DC converter applications.

KA3842 Features

* Low Start-Up and Operating Current
* High Current Totem Pole Output
* Undervoltage Lockout With Hysteresis
* Operating Frequency Up To 300KHz (384XA) 500KHz (384XAM) BLOCK DIAGRAM (toggle flip flop used only in UC3844, UC3845) PIN CONNECTION (TOP VIEW) Absolute

KA3842 Applications

* with a minimal external components. Internally implemented circuits include a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totempole output ideally suited for driving a power MOSFE

📥 Download Datasheet

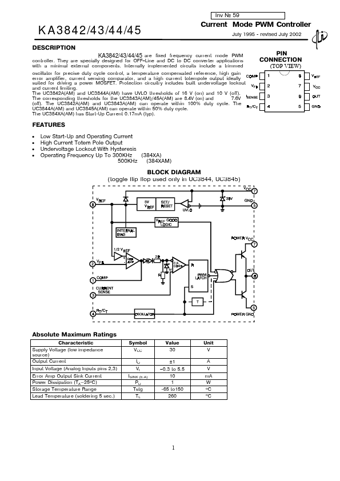

Preview of KA3842 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KA3842
Manufacturer
ETC
File Size
554.13 KB
Datasheet
KA3842-ETC.pdf
Description
CurrentMode PWM Controller
