JHD240128D - LCD Module

📥 Download Datasheet

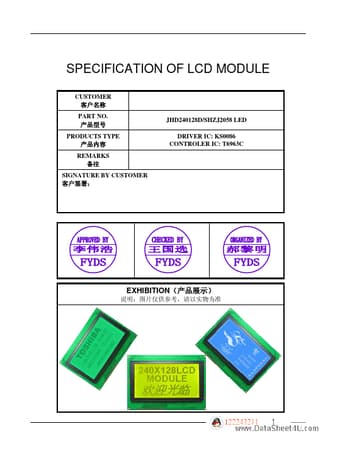

JHD240128D Datasheet Preview — Preview of JHD240128D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	JHD240128D
Manufacturer	ETC
File Size	357.60 KB
Description	LCD Module
Datasheet	JHD240128D_ETC.pdf

JHD240128D Product details

Features

Display construction…………… 240.
128 DOTS.
Display mode ……………………… STN OR FSTN( Y/G).
Display type ……………………… Positive Transflective.
Backlight…………………………… W/G/B/5.0V.
Viewing direction………………… 6 o’clock.
Operating temperature…………… Indoor.
Driving voltage…………………… Single power.
Driving method……………………… 1/128 duty, 1/12 bias.
Type…………………………………… COB (Chip On Board).
Number of data line……………… 8-bit parallel.
Connect.
