HA-A1377-FREQ, HAA CMOS Compatible Enable/Disable

HA-A1377-FREQ Description

CRYSTAL CLOCK OSCILLATORS CMOS Compatible Enable/Disable Data Sheet 0016J Rev.E HA-A1370/A1380 Series .
The HA-A1370 Series of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals for bus connected systems.

HA-A1377-FREQ Features

* Wide frequency range
* 0.5MHz to 20.0MHz
* User specified tolerance available
* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum
* Space-saving alternative to discrete component oscillators
* High shock resistance, to 3000g

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HA-A1377-FREQ, HAA. Please refer to the document for exact specifications by model.

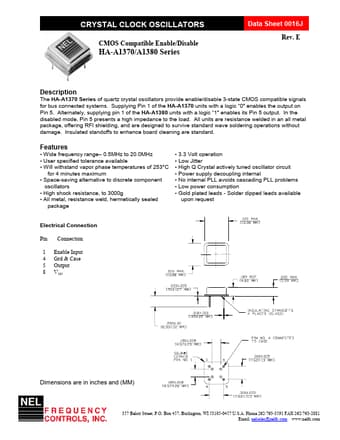

datasheet Preview Page 2

Datasheet Details

Part number
HA-A1377-FREQ, HAA
Manufacturer
ETC
File Size
389.47 KB
Datasheet
HAA-137.pdf
Description
CMOS Compatible Enable/Disable
Note
This datasheet PDF includes multiple part numbers: HA-A1377-FREQ, HAA.
Please refer to the document for exact specifications by model.
