HA-1370 - (HA-137x/138x) CMOS Compatible Enable/Disable

Description

The HA-A1370 Series of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals for bus connected systems.

Supplying Pin 1 of the HA-A1370 units with a logic “0" enables the output on Pin 5.

Features

  • Wide frequency range.
  • 0.5MHz to 20.0MHz.
  • User specified tolerance available.
  • Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
  • Space-saving alternative to discrete component oscillators.
  • High shock resistance, to 3000g.
  • All metal, resistance weld, hermetically sealed package Electrical Connection Pin 1 4 5 8 Connection Enable Input Grd & Case Output VDD.
  • 3.3 Volt operation.
  • Low Jitter.

📥 Download Datasheet

Datasheet Details

Part number HA-1370
Manufacturer Unknown Manufacturer
File Size 389.47 KB
Description (HA-137x/138x) CMOS Compatible Enable/Disable
Datasheet download datasheet HA-1370 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HA-1366WR 5.5W Audio Power Amplifier Hitachi
HA-1380 (HA-138x) Crystal Clock Oscillators NEL Frequency Controls
HA-1381 (HA-138x) Crystal Clock Oscillators NEL Frequency Controls
HA-1381 (HA-138x) Crystal Clock Oscillators NEL Frequency Controls
HA-1387 (HA-138x) Crystal Clock Oscillators NEL Frequency Controls

Other Datasheets by Unknown Manufacturer

Part Number Description
HA-1371 (HA-137x/138x) CMOS Compatible Enable/Disable
HA-1377 (HA-137x/138x) CMOS Compatible Enable/Disable
HA-1379 (HA-137x/138x) CMOS Compatible Enable/Disable
HA-137A (HA-137x/138x) CMOS Compatible Enable/Disable
HA-137B (HA-137x/138x) CMOS Compatible Enable/Disable

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

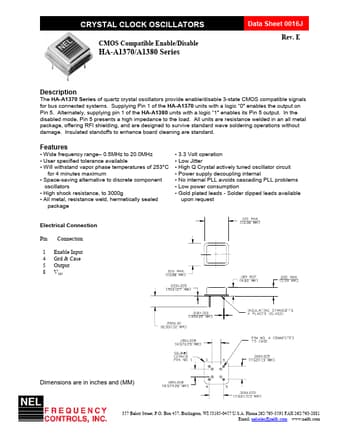

CRYSTAL CLOCK OSCILLATORS CMOS Compatible Enable/Disable Data Sheet 0016J Rev. E HA-A1370/A1380 Series Description The HA-A1370 Series of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals for bus connected systems. Supplying Pin 1 of the HA-A1370 units with a logic “0" enables the output on Pin 5. Alternately, supplying pin 1 of the HA-A1380 units with a logic “1" enables its Pin 5 output. In the disabled mode, Pin 5 presents a high impedance to the load. All units are resistance welded in an all metal package, offering RFI shielding, and are designed to survive standard wave soldering operations without damage. Insulated standoffs to enhance board cleaning are standard. Features • Wide frequency range– 0.5MHz to 20.
