GS88018AT-166I - 512K x 18/ 256K x 32/ 256K x 36 9Mb Sync Burst SRAMs

The GS88018AT-166I by ETC is a 512K x 18/ 256K x 32/ 256K x 36 9Mb Sync Burst SRAMs. Below is the official datasheet preview.

📥 Download Datasheet

GS88018AT-166I 512K x 18/ 256K x 32/ 256K x 36 9Mb Sync Burst SRAMs by ETC - Datasheet Preview — Official preview page of the **GS88018AT-166I** 512K x 18/ 256K x 32/ 256K x 36 9Mb Sync Burst SRAMs datasheet (ETC).

Datasheet Details

Part number	GS88018AT-166I
Manufacturer	ETC
File Size	756.70 KB
Description	512K x 18/ 256K x 32/ 256K x 36 9Mb Sync Burst SRAMs
Datasheet	GS88018AT-166I_ETC.pdf

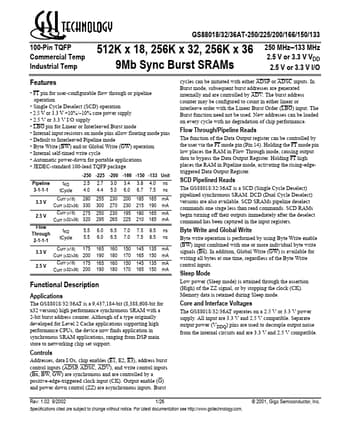

Additional preview pages of the GS88018AT-166I datasheet.

GS88018AT-166I Product details

Description

Applications The GS88018/32/36AT is a 9,437,184-bit (8,388,608-bit for x32 version) high performance synchronous SRAM with a 2-bit burst address counter.Although of a type originally developed for Level 2 Cache applications supporting high performance CPUs, the device now finds application in synchronous SRAM applications, ranging from DSP main store to networking chip set support.Core and Interface Voltages The GS88018/32/36AT operates on a 2.5 V or 3.3 V power supply.All input are 3.3 V an

Features

FT pin for user-configurable flow through or pipeline operation.
Single Cycle Deselect (SCD) operation.
2.5 V or 3.3 V +10%/.
10% core power supply.
2.5 V or 3.3 V I/O supply.
LBO pin for Linear or Interleaved Burst mode.
Internal input resistors on mode pins allow floating mode pins.
Default to Interleaved Pipeline mode.
Byte Write (BW) and/or Global Write (GW) operation.
Internal self-timed write cycle.
