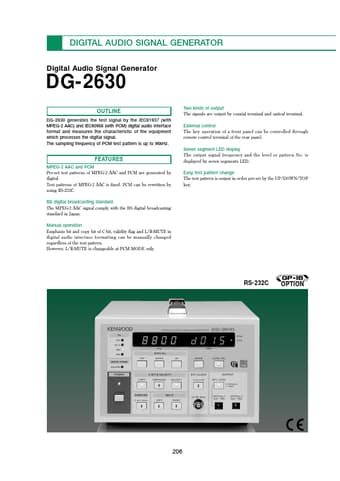

DG-2630, Digital Audio Signal Generator

DIGITAL AUDIO SIGNAL GENERATOR Digital Audio Signal Generator DG-2630 OUTLINE DG-2630 generates the test signal by the IEC61937 (with MPEG-2 AAC) and IEC60958 (with PCM) digital audio interface format and measures the characteristic of the equipment which processes the digital signal.

The sampling frequency of PCM test pattern is up to 96kHz.

Two kinds of output The signals are output by coaxial terminal and optical terminal.

External control The key operation of a front panel can be controlled

DG-2630 Features

* MPEG-2 AAC and PCM Pre-set test patterns of MPEG-2 AAC and PCM are generated by digital. Test patterns of MPEG-2 AAC is fixed. PCM can be rewritten by using RS-232C. BS digital broadcasting standard The MPEG-2 AAC signal comply with the BS digital broadcasting standard in Japan. Manual operation Emp
