DDU4C-5125 Datasheet (ETC) - 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C)

DDU4C-5125, 5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C)

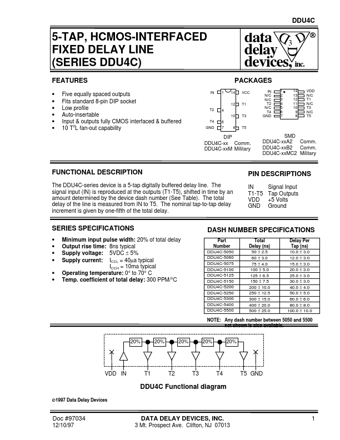

The DDU4C-series device is a 5-tap digitally buffered delay line.

The signal input (IN) is reproduced at the outputs (T1-T5), shifted in time by an amount determined by the device dash number (See Table).

The total delay of the line is measured from IN to T5.

The nominal tap-to-tap delay increment i

DDU4C-5125 Features

* Five equally spaced outputs Fits standard 8-pin DIP socket Low profile Auto-insertable Input & outputs fully CMOS interfaced & buffered 2 10 T L fan-out capability IN 1 14 12 T2 T4 GND 4 10 6 7 8 data 3 ® delay devices, inc. PACKAGES VCC T
