C-4880EG Datasheet (ETC) - 1.5 INCH/ 8 X 8 DOT MATRIX DISPLAY (MULTI-COLOR)

C-4880EG, 1.5 INCH/ 8 X 8 DOT MATRIX DISPLAY (MULTI-COLOR)

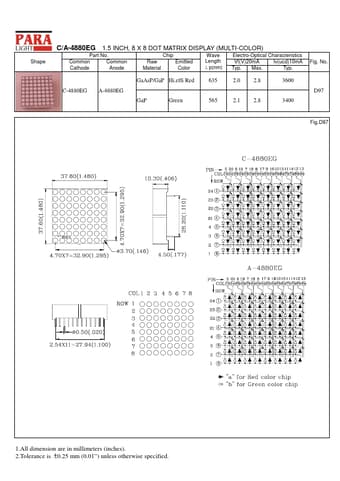

C/A-4880EG 1.5 INCH, 8 X 8 DOT MATRIX DISPLAY (MULTI-COLOR) Shape Part No.

Common Common Cathode Anode Chip Raw Material Emitted Color Wave Length λp(nm) Electro-Optical Characteristics Vf(V)20mA Iv(ucd)10mA Typ.

Max.

Typ.

Fig.

No.

GaAsP/GaP Hi.effi Red C-4880EG A-4880EG GaP Green 635 2.0 2.8 3600 D97 565 2.1 2.8 3400 Fig.D97 1.All dimension are in millimeters (inches).

2.Tolerance is ±0.25 mm (0.01”) unless otherwise specified.
