BE5982.02, BE598202 - Emergency Stop Relay

The BE5982.02 by ETC is a Emergency Stop Relay. Below is the official datasheet preview.

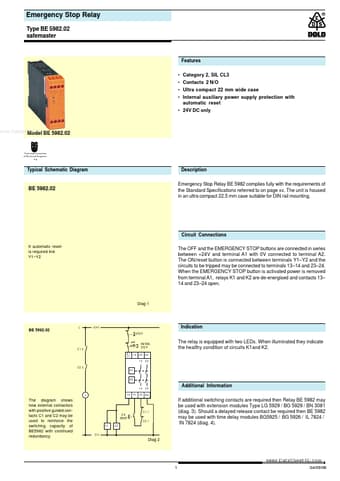

BE5982.02 Emergency Stop Relay by ETC - Datasheet Preview — Official preview page of the **BE5982.02** Emergency Stop Relay datasheet (ETC).

Datasheet Details

Part number	BE5982.02, BE598202
Manufacturer	ETC
File Size	62.58 KB
Description	Emergency Stop Relay
Datasheet	BE598202_ETC.pdf
Note	This datasheet PDF includes multiple part numbers: BE5982.02, BE598202. Please refer to the document for exact specifications by model.
Additional preview pages of the BE5982.02 datasheet.

BE5982.02 Product details

Description

BE 5982.02 Emergency Stop Relay BE 5982 complies fully with the requirements of the Standard Specifications referred to on page xx.The unit is housed in an ultra compact 22.5 mm case suitable for DIN rail mounting.Circuit Connections If automatic reset is required link Y1 Y2 The OFF and the EMERGENCY STOP buttons are connected in series between +24V and terminal A1 with 0V connected to terminal A2. The ON/reset button is connected between terminals Y1 Y2 and the circuits to

Features

Category 2, SIL CL3.
Contacts 2 N/O.
Ultra compact 22 mm wide case.
Internal auxiliary power supply protection with automatic reset.
24V DC only www. DataSheet4U. com Model BE 5982.02 Technical Committee of Electrical Engineering Typical Schematic Diagram.
