AV2025 - STEREO AUDIO AMPLIFIER

AV2025 Description

@vic STEREO AUDIO AMPLIFIER .
The AV2025 is a monolithic integrated circuit consisting of a 2 channel power amplifier.

AV2025 Features

* Bridge or stereo configuration. Few External components High Channel isolation Voltage range : 3V to 12V Power on/off no noise Voltage gain up to 45dB(Adjustable with external resistor) Soft clipping Internal Thermal protection Working Voltage down to 3V DIP-16 BLOCK DIAGRAM Temp. protent Startup

📥 Download Datasheet

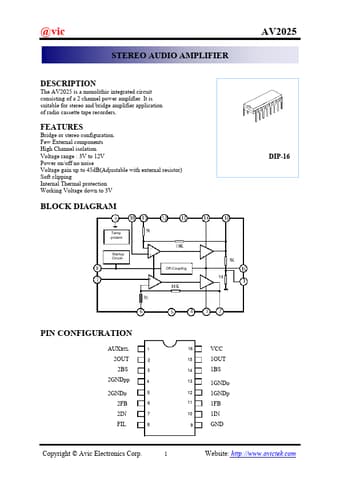

Preview of AV2025 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AV2025
Manufacturer
ETC
File Size
160.20 KB
Datasheet
AV2025_ETC.pdf
Description
STEREO AUDIO AMPLIFIER
