AMC7114, AMC7110 - White/Blue LED Driver

AMC7114 Description

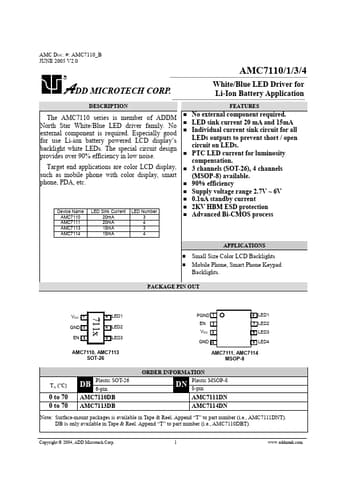

AMC DOC.#: AMC7110_B JUNE 2005 V2.0 ® AMC7110/1/3/4 White/Blue LED Driver for Li-Ion Battery Application .
The AMC7110 series is member of ADDM North Star White/Blue LED driver family.

AMC7114 Applications

* are color LCD display, such as mobile phone with color display, smart phone, PDA, etc. Device Name AMC7110 AMC7111 AMC7113 AMC7114 LED Sink Current 20mA 20mA 15mA 15mA LED Number 3 4 3 4 No external component required. LED sink current 20 mA and 15mA Individual current sink circuit for all LEDs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AMC7114, AMC7110. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
AMC7114, AMC7110
Manufacturer
ETC
File Size
115.27 KB
Datasheet
AMC7110_ETC.pdf
Description
White/Blue LED Driver
Note
This datasheet PDF includes multiple part numbers: AMC7114, AMC7110.
Please refer to the document for exact specifications by model.
