AL1201 stereo DAC

AL1201 Description

We make the parts that set creative people free™ General .
The AL1201 stereo DAC is a high performance 24-bit digital to analog audio converter.

AL1201 Features

* G G G G G G G G G G G G G 24 bit conversion 107dB dynamic range (A-wt) .003% THD at full scale output linear phase analog outputs 128x over sampling, 5th order 1 bit ∆-Σ modulator 2nd order switched cap filter and 2nd order continuous-time filter on chip sample rate variable 24kHz-55kHz selectable

📥 Download Datasheet

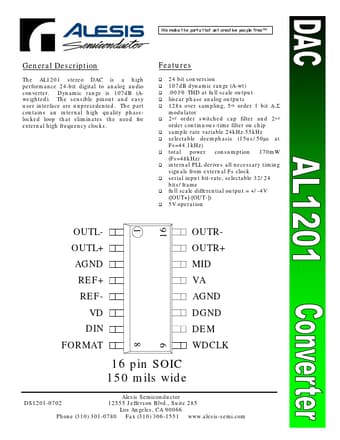

Preview of AL1201 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AL1201
Manufacturer
ETC
File Size
134.66 KB
Datasheet
AL1201_ETC.pdf
Description
stereo DAC
