AH201-PCB-1900 - Medium Power/ High Linearity Amplifier

AH201-PCB-1900 Description

AH201 Medium Power, High Linearity Amplifier The Communications Edge TM Preliminary Product Information Product .
The AH201 is a 1W driver amplifier that offers excellent dynamic range in a low cost, 6x6mm surface mount package.

AH201-PCB-1900 Features

* 400
* 2200 MHz
* +30 dBm P1dB
* +47 dBm Output IP3
* 17 dB Gain @ 900 MHz
* z MTBF >100 Years

AH201-PCB-1900 Applications

* and as high as +12V for improved P1dB and OIP3 performance. The backside metalization allows excellent thermal dissipation while allowing visible evidence of solder reflow throughout the bottom of the package on a SMT board. Superior thermal design allows the product an MTBF of over 100 years at a m

📥 Download Datasheet

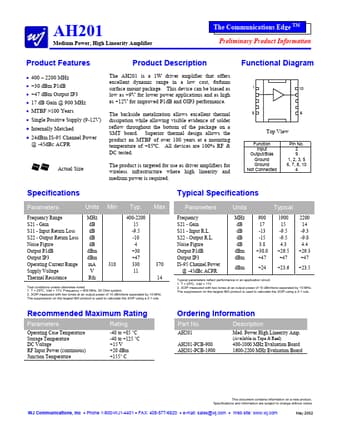

Preview of AH201-PCB-1900 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AH201-PCB-1900
Manufacturer
ETC
File Size
220.47 KB
Datasheet
AH201-PCB-1900_ETC.pdf
Description
Medium Power/ High Linearity Amplifier
