ABS152 - SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Download the ABS152 datasheet PDF. This datasheet also covers the ABS151 variant, as both devices belong to the same single phase 1.5amp surface mount glass passivated bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass passivated die construction.
  • Low forward voltage drop.
  • High current capability.
  • High surge current capability.
  • Designed for surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ABS151-ETC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ABS152
Manufacturer Unknown Manufacturer
File Size 1.37 MB
Description SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet download datasheet ABS152 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ABS152 SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER Eris
ABS152 Single Phase 1.5Amp Glass passivated Bridge Rectifiers ZRE
ABS15 CRYSTALS MOLDED PLASTIC SURFACE MOUNT Abracon Corporation
ABS1502 Bridge Rectifier Yangzhou Yangjie
ABS1504 Bridge Rectifier Yangzhou Yangjie

Other Datasheets by Unknown Manufacturer

Part Number Description
ABS151 SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
ABS1510 SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
ABS154 SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
ABS156 SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
ABS158 SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

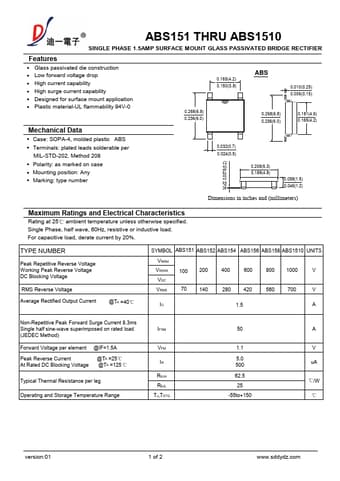

ABS151 THRU ABS1510 SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER Features · Glass passivated die construction · Low forward voltage drop · High current capability · High surge current capability · Designed for surface mount application · Plastic material-UL flammability 94V-0 0.165(4.2) 0.150(3.8) 0.268(6.8) 0.236(6.0) ABS 0.010(0.25) 0.006(0.15) 0.268(6.8) 0.236(6.0) 0.181(4.6) 0.165(4.2) Mechanical Data · Case: SOPA-4, molded plastic ABS · Terminals: plated leads solderable per MIL-STD-202, Method 208 0.032(0.7) 0.024(0.5) · Polarity: as marked on case · Mounting position: Any · Marking: type number 0.209(5.3) 0.189(4.8) 0.058(1.5) 0.046(1.2) MAX 0.0078(0.
