DESIGN SHOWCASE Supervisor IC indicates fan failure The brushless DC fans found in many types of equipment can be crucial to the performance and longevity of that equipment.

A quick indication of fan failure, moreover, can be essential in preventing major damage.

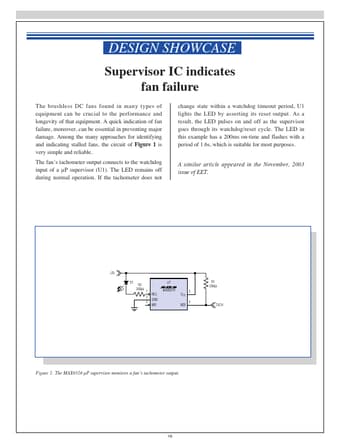

Among the many approaches for identifying and indicating stalled fans, the circuit of Figure 1 is very simple and reliable.

The fan’s tachometer output connects to the watchdog input of a µP supervisor (U1).

The LED remains off during n
