2N6366, NPN SILICON RF POWER TRANSISTOR

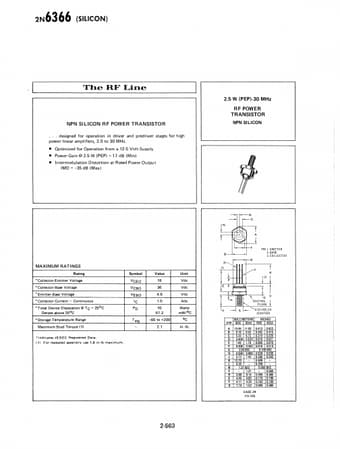

2N6366 (SILICON) The RF Line NPN SILICON RF POWER TRANSISTOR .

designed for operation in driver and predriver stages for high power linear amplifiers, 2.0 to 30 MHz.

Optimized for Operation from a 12.5 Volt Supply Power Gain @ 2.5 W (PEP) = 17 dB (Min) I ntermodulation Distortion at Rated Power Output IMD = -35 dB (Max) 2.5 W (PEP)-30 MHz RFPOWER TRANSISTOR NPN SILICON MAXIMUM RATINGS Rating COllector-Emitter Voltage Collector-Base Voltage Emitt
