2B23 - Isolated Voltage-to-Current Converter

Description

The model 2B23 is a high performance, low cost voltage to current converter featuring ±1500V pk input to output isolation for interfacing with standard process signals.

Features

  • Wide Input Range, Resistor Programmable Pin Programmable Output: 4 to 20mA or 0 to 20mA High CMV Input/Output Isolation: ±1500V pk Continuous Low Nonlinearity: ±0.05% max (2B23K) Low Span Drift: ± 0.005%/°C max (2B23K) Single Supply Operation: +14V to +28V Small Size: 1.8" x 2.4" x 0.6" Meets IEEE Std. 472: Transient Protection (SWC) Meets ISA Std. 50.1: Isolated Current Loop Transmitters.

📥 Download Datasheet

Datasheet Details

Part number 2B23
Manufacturer Unknown Manufacturer
File Size 61.06 KB
Description Isolated Voltage-to-Current Converter
Datasheet download datasheet 2B23 Datasheet

📁 Similar Datasheet

  • 2B23 - Isolated Voltage-to-Current Converter (Analog Devices)
  • 2B265 - ICE2B265 (Infineon Technologies Corporation)
Other Datasheets by ETC
  • 2B20 - 4-20mA Output Voltage-to-Current Converter
  • 2B22 - Isolated Voltage-to-Current Converter

Full PDF Text Transcription

Click to expand full text

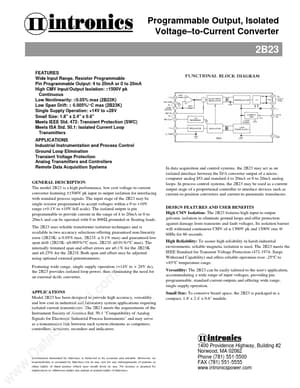

www.DataSheet4U.com Programmable Output, Isolated Voltage–to-Current Converter 2B23 FEATURES Wide Input Range, Resistor Programmable Pin Programmable Output: 4 to 20mA or 0 to 20mA High CMV Input/Output Isolation: ±1500V pk Continuous Low Nonlinearity: ±0.05% max (2B23K) Low Span Drift: ± 0.005%/°C max (2B23K) Single Supply Operation: +14V to +28V Small Size: 1.8" x 2.4" x 0.6" Meets IEEE Std. 472: Transient Protection (SWC) Meets ISA Std. 50.
