23C256 - HT23C256

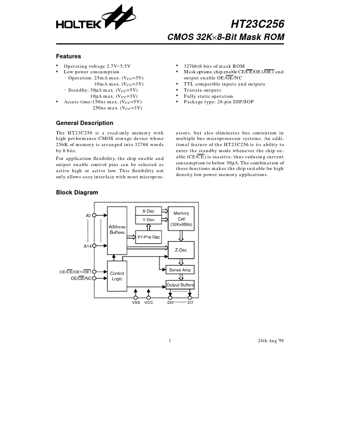

23C256 Datasheet Preview — Preview of 23C256 PDF

Datasheet Details

Part number	23C256
Manufacturer	ETC
File Size	239.45 KB
Description	HT23C256
Datasheet	23C256_ETC.pdf

23C256 Product details

Description

The HT23C256 is a read-only memory with high performance CMOS storage device whose 256K of memory is arranged into 32768 words by 8 bits. 32768×8 bits of mask ROM Mask options: chip enable CE/CE/OE1/OE1 and output enable OE/OE/NC TTL compatible inputs and outputs Tris

Features

Operating voltage 2.7V~5.5V.
Low power consumption.
Operation: 25mA max. (VCC=5V) 10mA max. (VCC=3V).
Standby: 30µA max. (VCC=5V) 10µA max. (VCC=3V).
Access time:150ns max. (VCC=5V) 250ns max. (VCC=3V) General.
