2214-1200G, 221 20-TAPDIPDELAYLINETD/TR=10(SERIES2214)

Description

2214 20-TAP DIP DELAY LINE TD/TR = 10 (SERIES 2214) .
IN Signal Input T1-T20 Tap Outputs GND Ground FUNCTIONAL DESCRIPTION The 2214-series device is a fixed, single-input, twenty-output, passive delay l.

📥 Download Datasheet

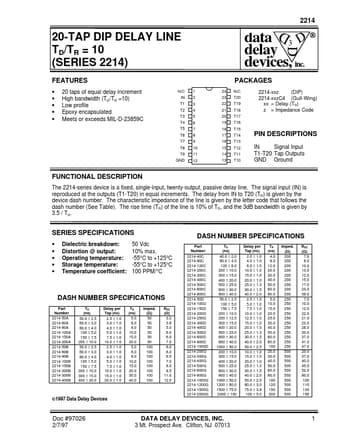

2214-1200G Datasheet Preview — This datasheet PDF includes multiple part numbers: 2214-1200G, 221. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2214-1200G, 221
Manufacturer: ETC
File Size: 51.61 KB
Datasheet: 221-4.pdf
Description: 20-TAPDIPDELAYLINETD/TR=10(SERIES2214)
Note: This datasheet PDF includes multiple part numbers: 2214-1200G, 221.
Please refer to the document for exact specifications by model.

Features

* 20 taps of equal delay increment High bandwidth (TD/TR =10) Low profile Epoxy encapsulated Meets or exceeds MIL-D-23859C N/C IN T1 T2 T3 T4 T5 T6 T7 T8 T9 GND 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 N/C T20 T19 T18 T17 T16 T15
