2211-120C - FIXEDDIPDELAYLINE

Download the 2211-120C datasheet PDF (221 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for fixeddipdelayline.

Description

The 2211-series device is a fixed, single-input, single-output, passive delay line.

The signal input (IN) is reproduced at the output (OUT) with a delay (TD) given by the device dash number.

Features

  • High bandwidth (TD/TR =10) Low profile Epoxy encapsulated Meets or exceeds MIL-D-23859C N/C IN N/C N/C N/C N/C N/C N/C N/C N/C N/C GND 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 N/C OUT N/C N/C N/C N/C N/C N/C N/C N/C N/C N/C data 3 ® delay devices, inc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (221-1.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2211-120C
Manufacturer Unknown Manufacturer
File Size 42.38 KB
Description FIXEDDIPDELAYLINE
Datasheet download datasheet 2211-120C Datasheet

📁 Similar Datasheet

  • 2211-12-301 - Reed Relays (COTO)
  • 2211-05-301 - Reed Relays (COTO)
  • 2211 - Safety Certified MLCC Capacitor (Knowles)
  • 2211S-02G - (2211S Series) PCB Through Hole Header (Multicomp)
  • 2211S-03G - (2211S Series) PCB Through Hole Header (Multicomp)
  • 2211S-04G - PCB Through Hole Header (Multicomp)
  • 2211S-04G - (2211S Series) PCB Through Hole Header (Multicomp)
  • 2211S-05G - (2211S Series) PCB Through Hole Header (Multicomp)
  • 2211S-06G - (2211S Series) PCB Through Hole Header (Multicomp)
  • 2211S-08G - (2211S Series) PCB Through Hole Header (Multicomp)
Other Datasheets by ETC

Full PDF Text Transcription

Click to expand full text

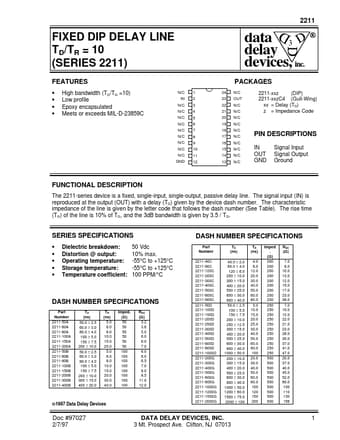

2211 FIXED DIP DELAY LINE TD/TR = 10 (SERIES 2211) FEATURES • • • • High bandwidth (TD/TR =10) Low profile Epoxy encapsulated Meets or exceeds MIL-D-23859C N/C IN N/C N/C N/C N/C N/C N/C N/C N/C N/C GND 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 N/C OUT N/C N/C N/C N/C N/C N/C N/C N/C N/C N/C data 3 ® delay devices, inc. PACKAGES 2211-xxz (DIP) 2211-xxzC4 (Gull-Wing) xx = Delay (TD) z = Impedance Code PIN DESCRIPTIONS IN OUT GND Signal Input Signal Output Ground FUNCTIONAL DESCRIPTION The 2211-series device is a fixed, single-input, single-output, passive delay line. The signal input (IN) is reproduced at the output (OUT) with a delay (TD) given by the device dash number.
