17HD6023N - Hybrid Stepper Motors

Download the 17HD6023N datasheet PDF. This datasheet also covers the 17HD2011N variant, as both devices belong to the same hybrid stepper motors family and are provided as variant models within a single manufacturer datasheet.

Features

  • I High Torque I High Accuracy I Smooth Movement General Specifications Bi-polar Model Number Resistance Inductance Rated per Phase per Phase Current ohm mH A 17HD2011N 1.9 4 1.5 17HD2015N 18 35 0.5 17HD2018N 6 14 0.85 17HD2022N 16 32.0 0.50 17HD2023N 3.5 51 17HD2024N 4.1 8.5 1 17HD2025N 66 116 0.25 17HD2026N 4.4 10 1 17HD2027N 71.4 140 0.25 17HD2028N 60 120 0.28 17HD4005-01N 7.4 11.0 0.60 17HD4022-01N 3.0 4.2 1.10 17HD4024N 15 20.0 0.50 17HD4025N 54.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (17HD2011N-ETC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 17HD6023N
Manufacturer Unknown Manufacturer
File Size 194.11 KB
Description Hybrid Stepper Motors
Datasheet download datasheet 17HD6023N Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
17HD48002-22B Stepper Motor Busheng
17H2A2406 2 Phase Hybrid Stepper Motor MotionKing
17H2A3404 2 Phase Hybrid Stepper Motor MotionKing
17H2A3413 2 Phase Hybrid Stepper Motor MotionKing
17H2A3417 2 Phase Hybrid Stepper Motor MotionKing

Other Datasheets by Unknown Manufacturer

Part Number Description
17HD6020N Hybrid Stepper Motors
17HD6021N Hybrid Stepper Motors
17HD6022N Hybrid Stepper Motors
17HD6024N Hybrid Stepper Motors
17HD6025N Hybrid Stepper Motors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

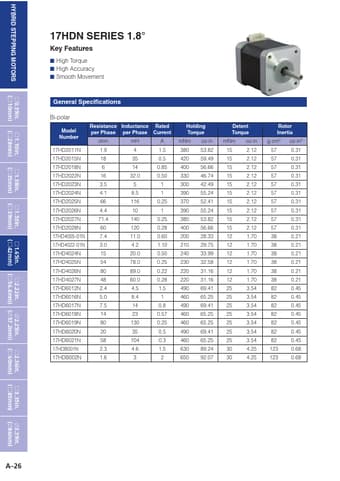

HYBRID STEPPING MOTORS ƶ0.39in. ƶ1.10in. ƶ1.38in. ƶ1.53in. ƶ1.65in. ƶ2.22in. ‡2.25in. ƶ2.36in. ƶ3.35in. ‡3.39in. (ƶ10mm) (ƶ28mm) (ƶ35mm) (ƶ39mm) (ƶ42mm) (ƶ56.4mm) (‡57.2mm) (ƶ60mm) (ƶ85mm) (‡86mm) 17HDN SERIES 1.8° Key Features I High Torque I High Accuracy I Smooth Movement General Specifications Bi-polar Model Number Resistance Inductance Rated per Phase per Phase Current ohm mH A 17HD2011N 1.9 4 1.5 17HD2015N 18 35 0.5 17HD2018N 6 14 0.85 17HD2022N 16 32.0 0.50 17HD2023N 3.5 51 17HD2024N 4.1 8.5 1 17HD2025N 66 116 0.25 17HD2026N 4.4 10 1 17HD2027N 71.4 140 0.25 17HD2028N 60 120 0.28 17HD4005-01N 7.4 11.0 0.60 17HD4022-01N 3.0 4.2 1.10 17HD4024N 15 20.0 0.50 17HD4025N 54 78.0 0.25 17HD4026N 80 89.0 0.22 17HD4027N 48 60.0 0.
