17HD4005-01N, 17HD2011N - Hybrid Stepper Motors

The 17HD4005-01N by ETC is a Hybrid Stepper Motors. Below is the official datasheet preview.

Datasheet Details

Part number	17HD4005-01N, 17HD2011N
Manufacturer	ETC
File Size	194.11 KB
Description	Hybrid Stepper Motors
Datasheet	17HD2011N-ETC.pdf
Note	This datasheet PDF includes multiple part numbers: 17HD4005-01N, 17HD2011N. Please refer to the document for exact specifications by model.

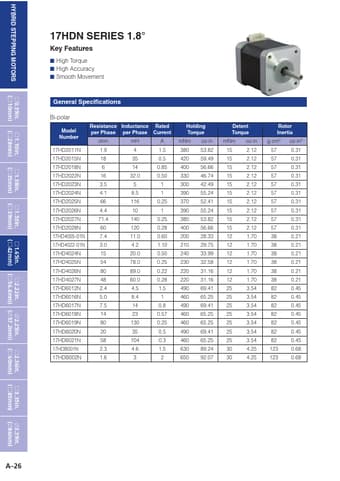

Additional preview pages of the 17HD4005-01N datasheet.

I High Torque I High Accuracy I Smooth Movement General Speciﬁcations Bi-polar Model Number Resistance Inductance Rated per Phase per Phase Current ohm mH A 17HD2011N 1.9 4 1.5 17HD2015N 18 35 0.5 17HD2018N 6 14 0.85 17HD2022N 16 32.0 0.50 17HD2023N 3.5 51 17HD2024N 4.1 8.5 1 17HD2025N 66 116 0.25 17HD2026N 4.4 10 1 17HD2027N 71.4 140 0.25 17HD2028N 60 120 0.28 17HD4005-01N 7.4 11.0 0.60 17HD4022-01N 3.0 4.2 1.10 17HD4024N 15 20.0 0.50 17HD4025N 54.
