11HS1005 - Hybrid Stepper Motors

The 11HS1005 by ETC is a Hybrid Stepper Motors. Below is the official datasheet preview.

Datasheet Details

Part number	11HS1005
Manufacturer	ETC
File Size	133.50 KB
Description	Hybrid Stepper Motors
Datasheet	11HS1005-ETC.pdf

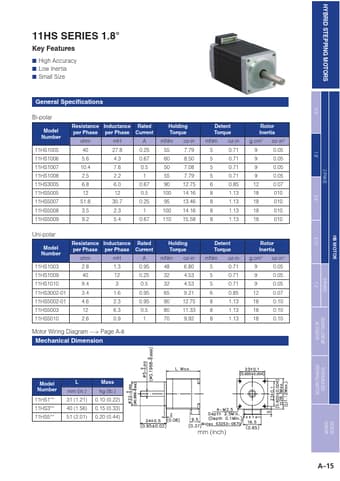

Additional preview pages of the 11HS1005 datasheet.

I High Accuracy I Low Inertia I Small Size General Speciﬁcations Bi-polar Model Number 11HS1005 11HS1006 11HS1007 11HS1008 11HS3005 11HS5005 11HS5007 11HS5008 11HS5009 Resistance Inductance Rated per Phase per Phase Current ohm mH A 40 27.8 0.25 5.6 4.3 0.67 10.4 7.6 0.5 2.5 2.2 1 6.8 6.0 0.67 12 12 0.5 51.8 30.7 0.25 3.5 2.3 1 9.2 5.4 0.67 Holding Torque mNm oz-in 55 7.79 60 8.50 50 7.08 55 7.79 90 12.75 100 14.16 95 13.46 100 14.16 110 15.58 Detent Torque mNm oz-in 5 0.71.
