ETA9740 - 2.4A Boost and Fuel Gauge

Description

ETA9740 is a switching Li-Ion battery charger capable of delivering up to 3A of charging current to the battery and also capable of delivering up to 5V/2.4A in boost operation, with high efficiency in both charging mode and boost mode.

It also includes a fuel gauge system for power indication.

Features

  • Bi-Directional Power conversion with Single Inductor.
  • Automatic Mode Switching.
  • Switching Charger.
  • 5V Synchronous Boost.
  • Up to 96% Efficiency.
  • Up to 3A Max charging current and 2.4A discharging.
  • No-Battery detection.
  • No External Sense resistor.
  • 4 LEDs Fuel gauge.

📥 Download Datasheet

Datasheet Details

Part number ETA9740
Manufacturer ETA
File Size 561.91 KB
Description 2.4A Boost and Fuel Gauge
Datasheet download datasheet ETA9740 Datasheet

📁 Similar Datasheet

  • ETA1483 - 18V High Efficiency Synchronous Step-Down Converter (ETA solutions)
  • ETA1485 - 18V High Efficiency Synchronous Step-Down Converter (ETA solutions)
Other Datasheets by ETA
  • ETA9741 - 2.4A Boost and Fuel Gauge
  • ETA9742 - 2.4A Boost and 3 LED-indicators
  • ETA9720 - 1.2A Switching Charger
  • ETA9722 - 1.2A Boost and 3 LED-indicators
  • ETA9797 - Ultra Low Power PMU
  • ETA9084 - Ultra Low Power 5V Boost Converter
  • ETA9085 - Ultra Low Power 5V Boost Converter
  • ETA9184 - Ultra Low Power 5V Boost Converter

Full PDF Text Transcription

Click to expand full text

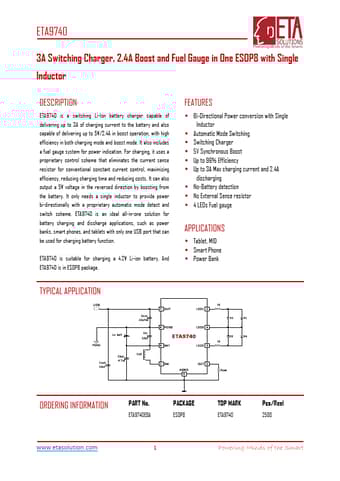

ETA9740 3A Switching Charger, 2.4A Boost and Fuel Gauge in One ESOP8 with Single Inductor DESCRIPTION ETA9740 is a switching Li-Ion battery charger capable of delivering up to 3A of charging current to the battery and also capable of delivering up to 5V/2.4A in boost operation, with high efficiency in both charging mode and boost mode. It also includes a fuel gauge system for power indication. For charging, it uses a proprietary control scheme that eliminates the current sense resistor for conventional constant current control, maximizing efficiency, reducing charging time and reducing costs. It can also output a 5V voltage in the reversed direction by boosting from the battery.
