ETA9722 - 1.2A Boost and 3 LED-indicators

Description

ETA9722 is a switching Li-Ion battery charger capable of delivering up to 1.2A of charging current to the battery and also capable of delivering up to 5V/1.2A in boost operation, with high efficiency in both charging mode and boost mode.

It also includes a fuel gauge system for power indication.

Features

  • Bi-Directional Power conversion with Single Inductor.
  • Automatic Mode Switching.
  • Switching Charger.
  • 5V Synchronous Boost.
  • Up to 96% Efficiency.
  • Up to 1.2A Max charging current and 1.2A discharging.
  • No-Battery detection.
  • No External Sense resistor.
  • LEDs for battery level indication and charge/discharge status indication.

📥 Download Datasheet

Datasheet Details

Part number ETA9722
Manufacturer ETA
File Size 534.82 KB
Description 1.2A Boost and 3 LED-indicators
Datasheet download datasheet ETA9722 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ETA1483 18V High Efficiency Synchronous Step-Down Converter ETA solutions
ETA1485 18V High Efficiency Synchronous Step-Down Converter ETA solutions

Other Datasheets by ETA

Part Number Description
ETA9720 1.2A Switching Charger
ETA9740 2.4A Boost and Fuel Gauge
ETA9741 2.4A Boost and Fuel Gauge
ETA9742 2.4A Boost and 3 LED-indicators
ETA9797 Ultra Low Power PMU

Full PDF Text Transcription

Click to expand full text

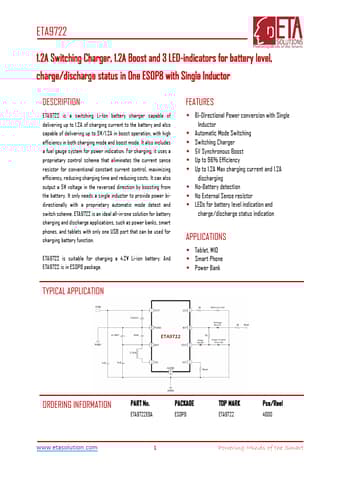

ETA9722 1.2A Switching Charger, 1.2A Boost and 3 LED-indicators for battery level, charge/discharge status in One ESOP8 with Single Inductor DESCRIPTION ETA9722 is a switching Li-Ion battery charger capable of delivering up to 1.2A of charging current to the battery and also capable of delivering up to 5V/1.2A in boost operation, with high efficiency in both charging mode and boost mode. It also includes a fuel gauge system for power indication. For charging, it uses a proprietary control scheme that eliminates the current sense resistor for conventional constant current control, maximizing efficiency, reducing charging time and reducing costs. It can also output a 5V voltage in the reversed direction by boosting from the battery.
