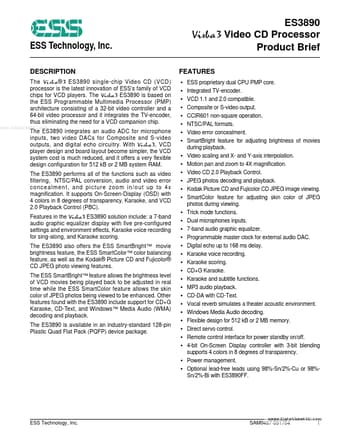

Additional preview pages of the ESS3890 datasheet.

Product details

Description

The 6ISBA ® ES3890 single-chip Video CD (VCD) processor is the latest innovation of ESS’s family of VCD chips for VCD players.

Features

ESS proprietary dual CPU PMP core. Integrated TV-encoder. VCD 1.1 and 2.0 compatible. Composite or S-video output. CCIR601 non-square operation. NTSC/PAL formats. Video error concealment. The ES3890 integrates an audio ADC for microphone inputs, two video DACs for Composite and S-video outputs, and digital echo circuitry. With 6ISBA , VCD player design and board layout become simpler, the VCD system cost is much re.
