M15T1G1664A-BDBG2C - DDR3 SDRAM

Product Overview

ESMT

Part number	M15T1G1664A-BDBG2C
Manufacturer	ESMT
File Size	7.20 MB
Description	DDR3 SDRAM
Datasheet	M15T1G1664A-BDBG2C Datasheet
Note	This datasheet PDF includes multiple part numbers: M15T1G1664A-BDBG2C, M15T1G1664A. Please refer to the document for exact specifications by model.

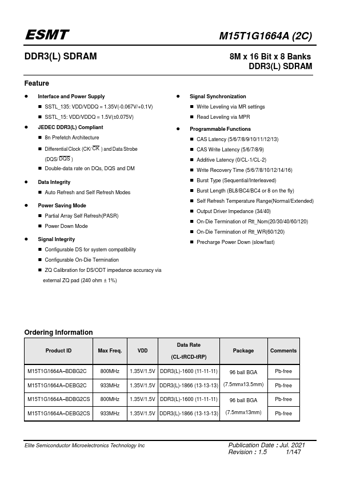

Additional preview pages of the M15T1G1664A-BDBG2C datasheet.

The 1Gb Double-Data-Rate-3(L), DDR3(L) DRAM is double data rate architecture to achieve high-speed operation.

and all of the control and address inputs are synchronized with a pair of externally supplied differential clocks. Inputs are latched at the cross point of differential clocks (CK rising and CK falling). All I/Os are synchronized with a differential DQS pair in a source synchronous fashion. These devices operate with a single 1.35V -0.067V/+0.1V or 1.5V ± 0.075V power supply and are available in BGA packages. DDR3(L) SDRAM Addressing Configuration M15T1G1664A # of Bank 8 Bank Address BA0.
