M12L128168A-6TG - 2M x 16 Bit x 4 Banks Synchronous DRAM

Download the M12L128168A-6TG datasheet PDF. This datasheet also covers the M12L128168A-5TG variant, as both devices belong to the same 2m x 16 bit x 4 banks synchronous dram family and are provided as variant models within a single manufacturer datasheet.

Description

The M12L128168A is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits.

Features

  • y JEDEC standard 3.3V power supply y LVTTL compatible with multiplexed address y Four banks operation y MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave ) y All inputs are sampled at the positive going edge of the system clock y Burst Read single write operation y DQM for masking y Auto & self refresh y 64ms refresh period (4K cycle).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M12L128168A-5TG-ESMT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number M12L128168A-6TG
Manufacturer ESMT
File Size 602.24 KB
Description 2M x 16 Bit x 4 Banks Synchronous DRAM
Datasheet download datasheet M12L128168A-6TG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M12 12-KEYS PIANO 8/12 DEMO TUNES IC MOSDESIGN
M120 NON VOLATILE RANDOM ACCESS MEMORY SGS
M120-2 NON VOLATILE RANDOM ACCESS MEMORY SGS
M1200 Mercury TM1200 PCB-Mount Analog Encoders GSI Group
M1200A ON/OFF ONE SHOT LED FLASH IC MOSDESIGN

Other Datasheets by ESMT

Part Number Description
M12L128168A-6TG2N 2M x 16 Bit x 4 Banks Synchronous DRAM
M12L128168A-6TG2S 2M x 16 Bit x 4 Banks Synchronous DRAM
M12L128168A-6TVAG2N Synchronous DRAM
M12L128168A-6TVAG2S 2M x 16 Bit x 4 Banks Synchronous DRAM
M12L128168A-6TVG2N Synchronous DRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

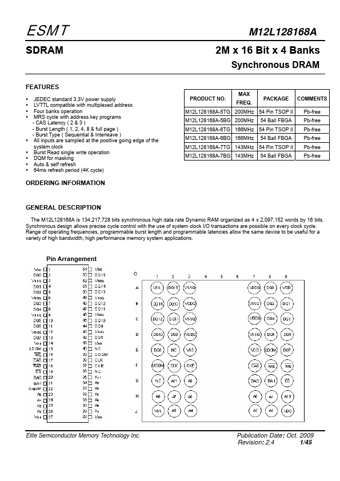

ESMT SDRAM FEATURES y JEDEC standard 3.3V power supply y LVTTL compatible with multiplexed address y Four banks operation y MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave ) y All inputs are sampled at the positive going edge of the system clock y Burst Read single write operation y DQM for masking y Auto & self refresh y 64ms refresh period (4K cycle) ORDERING INFORMATION M12L128168A 2M x 16 Bit x 4 Banks Synchronous DRAM PRODUCT NO. MAX FREQ.
